Dedicated for diode lasers and Nd:YAG used in medicine and industry, allowing light to be transmitted from the source to the target.
Standard connectors (e.g. HP SMA) are compatible with all laser systems.
Steel covers increase durability.

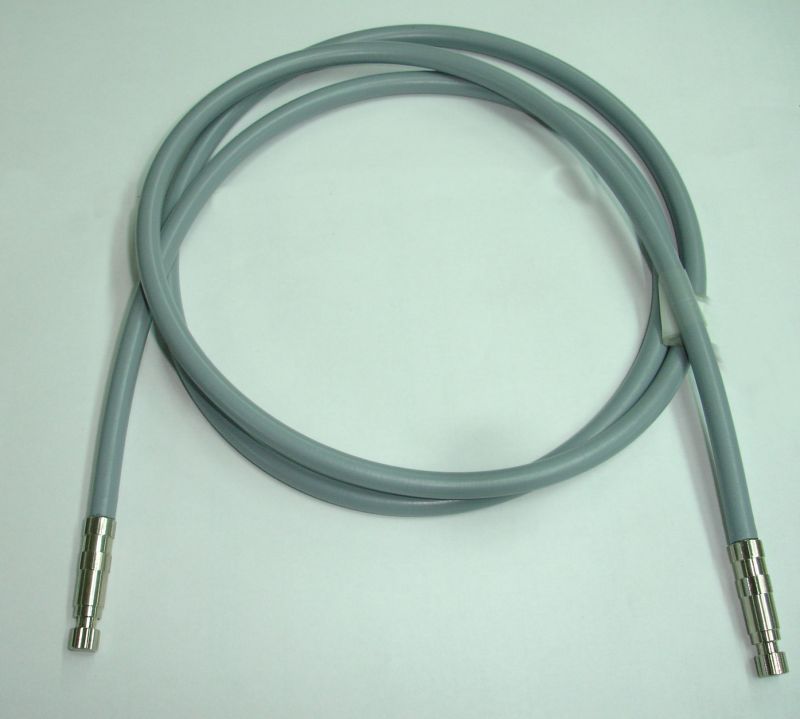

Cables for lasers with a power of up to 10kW - with the use of fibers with diameters from 0.1 to 2.5mm.
The appropriate selection of the fiber ensures the best transmission parameters.
Spectral ranges from 400 nm to 2600 nm.
Lengths from 0.3m to 20m.

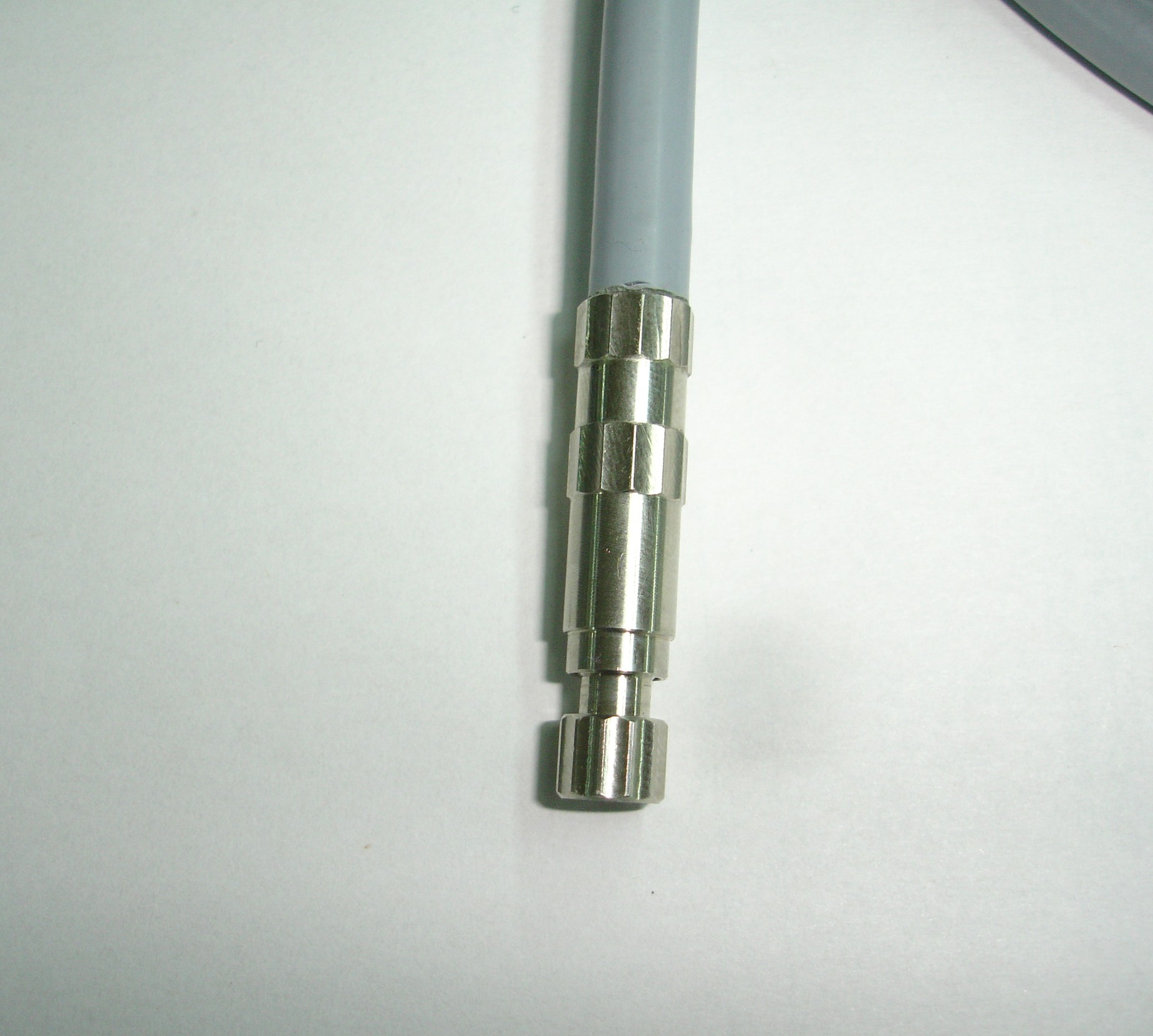

For high power lasers we use "free-standing" plugs to prevent damage of the fiber by the incident laser beam and increase the "service life" of the cables.
| Core diameter (mm) | 0.1 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 |
| Max power (kW) | 0.1 | 0.6 | 1 | 4 | 6 | 8 |
